Optimizer Benchmark¶
This notebook compares different optimization solvers from cadre on the Rosenbrock function.
Test Matrix¶
Solver Category |
Configurations |
Total Runs |
|---|---|---|
Adam/SGD/Ada |
4 solvers x 2 lr x 2 precond |
16 |
Active Set v1 |
4 solvers x 3 lr x 2 linesearch |
24 |
Active Set v2 |
4 solvers x 3 lr x 2 linesearch |
24 |
LBFGS |
2 linesearch x 2 precond |
4 |
Total |
68 |
[1]:
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import pandas as pd
from cadre import minimize
# Enable 64-bit precision
jax.config.update("jax_enable_x64", True)
W0123 17:10:34.574353 31328 cuda_executor.cc:1802] GPU interconnect information not available: INTERNAL: NVML doesn't support extracting fabric info or NVLink is not used by the device.
W0123 17:10:34.581748 31253 cuda_executor.cc:1802] GPU interconnect information not available: INTERNAL: NVML doesn't support extracting fabric info or NVLink is not used by the device.
[2]:
def rosenbrock(x):
"""Rosenbrock function.
f(x) = sum(100*(x[i+1] - x[i]^2)^2 + (1 - x[i])^2)
Minimum: x* = [1, 1, ..., 1], f(x*) = 0
"""
return jnp.sum(100.0 * (x[1:] - x[:-1] ** 2) ** 2 + (1 - x[:-1]) ** 2)
# Test the function
n_dims = 10
x_opt = jnp.ones(n_dims) * 10
print(f"f(x*) = {rosenbrock(x_opt):.2e}")
# Classic starting point
x0 = jnp.array([-1.2, 1.0] * (n_dims // 2))
print(f"f(x0) = {rosenbrock(x0):.2e}")
param, state = minimize(
rosenbrock,
x0,
solver_name="adam",
max_iter=200,
atol=1e-15,
rtol=1e-15,
lower_bound=-5.0,
upper_bound=5.0,
)
print(f"Optimized f(x) = {rosenbrock(param):.2e}")

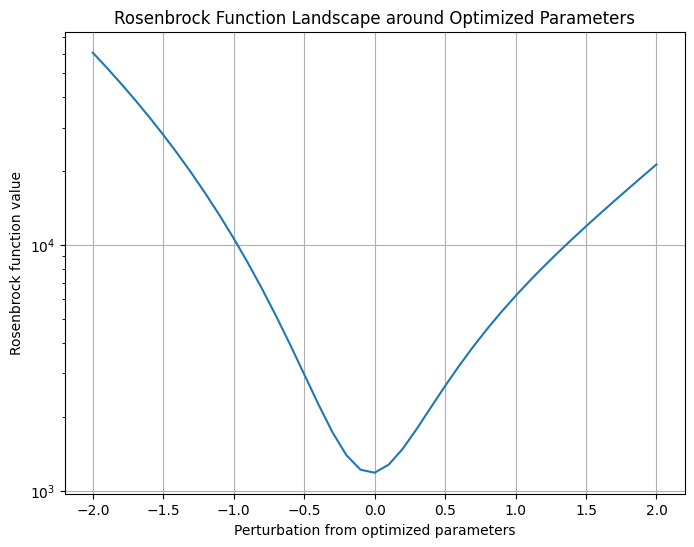

perturb_scale = 0.1
steps = jnp.arange(-20, 21, 1) * perturb_scale
grid_vals = steps.reshape(-1, 1) + param.reshape(1, -1)
vals = jax.vmap(rosenbrock)(grid_vals)
plt.figure(figsize=(8, 6))
plt.plot(steps, vals)
plt.yscale("log")
plt.xlabel("Perturbation from optimized parameters")
plt.ylabel("Rosenbrock function value")
plt.title("Rosenbrock Function Landscape around Optimized Parameters")
plt.grid()
plt.show()
# 2. Materialize the full Hessian Matrix
H = jax.hessian(rosenbrock)(param)
# 3. Compute Eigenvalues/Vectors
# eigh guarantees real eigenvalues for symmetric matrices
eigvals, eigvecs = jnp.linalg.eigh(H)
# eigvals are sorted ascending.
# eigvecs[:, i] is the vector corresponding to eigvals[i]
print("Smallest eigenvalue:", eigvals[0])
print("Associated vector:", eigvecs[:, 0])

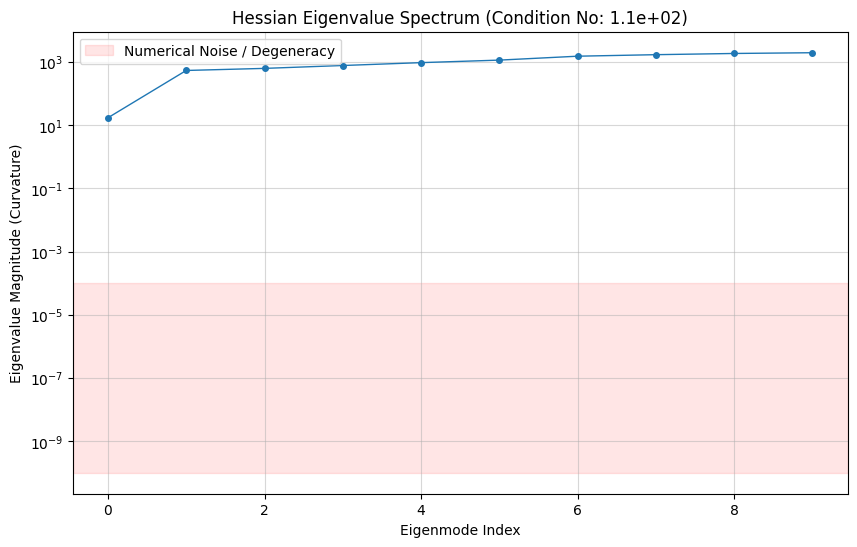

# Assuming 'eigvals' comes from jnp.linalg.eigh(H)
# Sort them just in case (eigh usually sorts, but good practice)
eigvals_sorted = jnp.sort(eigvals)
plt.figure(figsize=(10, 6))
plt.plot(eigvals_sorted, "o-", markersize=4, linewidth=1)
plt.yscale("log") # CRITICAL: Use log scale to see the tiny values
plt.title(f"Hessian Eigenvalue Spectrum (Condition No: {eigvals_sorted[-1]/eigvals_sorted[0]:.1e})")
plt.ylabel("Eigenvalue Magnitude (Curvature)")
plt.xlabel("Eigenmode Index")
plt.grid(True, which="both", ls="-", alpha=0.5)
# Add a "Dangerous Flatness" zone
plt.axhspan(1e-10, 1e-4, color="red", alpha=0.1, label="Numerical Noise / Degeneracy")
plt.legend()
plt.show()
f(x*) = 7.29e+06
f(x0) = 2.06e+03
100.00%|██████████| [00:00<00:00, 1994.38%/s]
Optimized f(x) = 1.18e+03
Smallest eigenvalue: 17.231431250435254
Associated vector: [-5.87074112e-05 1.32507283e-04 4.90897627e-04 -1.21946326e-03
-4.58686639e-03 1.14099154e-02 4.29246869e-02 -1.06786199e-01
-4.03218167e-01 9.07753443e-01]
[36]:

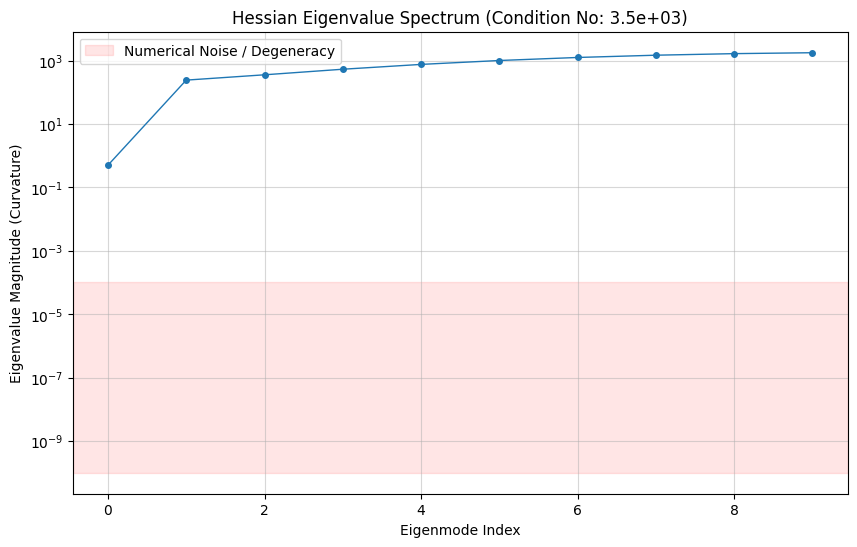

import matplotlib.pyplot as plt
# Assuming 'eigvals' comes from jnp.linalg.eigh(H)
# Sort them just in case (eigh usually sorts, but good practice)
eigvals_sorted = jnp.sort(eigvals)
plt.figure(figsize=(10, 6))
plt.plot(eigvals_sorted, "o-", markersize=4, linewidth=1)
plt.yscale("log") # CRITICAL: Use log scale to see the tiny values
plt.title(f"Hessian Eigenvalue Spectrum (Condition No: {eigvals_sorted[-1]/eigvals_sorted[0]:.1e})")
plt.ylabel("Eigenvalue Magnitude (Curvature)")
plt.xlabel("Eigenmode Index")
plt.grid(True, which="both", ls="-", alpha=0.5)
# Add a "Dangerous Flatness" zone
plt.axhspan(1e-10, 1e-4, color="red", alpha=0.1, label="Numerical Noise / Degeneracy")
plt.legend()
plt.show()
[13]:
hessian = jax.hessian(rosenbrock)(param)
hessian @ jnp.ones_like(param)
[13]:
Array([ 402., 202., 202., 202., 202., 202., 202., 202., 202.,
-200.], dtype=float64)
[ ]:
import jax
import jax.numpy as jnp
import numpy as np
from scipy.sparse.linalg import LinearOperator, eigsh
# 1. Define your Function (Rosenbrock)
def rosenbrock(x):
return jnp.sum(100.0 * (x[1:] - x[:-1] ** 2) ** 2 + (1 - x[:-1]) ** 2)
# 2. Define the Hessian-Vector Product (HVP)
# This computes H*v using forward-over-reverse auto-diff
@jax.jit
def hvp(f, primals, tangents):
return jax.jvp(jax.grad(f), (primals,), (tangents,))[1]
# 3. Wrapper for SciPy's LinearOperator
def get_eigenvalues(func, params, k=1):
"""
Computes the k smallest and k largest eigenvalues of the Hessian
at 'params' without materializing the matrix.
"""
N = params.shape[0]
# Define the matrix-vector multiplication for SciPy
def matvec(v):
v_jax = jnp.array(v)
# hvp requires the function, the point (params), and the vector (v)
return np.array(hvp(func, params, v_jax))
# Create the LinearOperator
A = LinearOperator((N, N), matvec=matvec)
# Compute Smallest Eigenvalue (Algebraic) -> Checks for negative curvature
evals_small, evecs_small = eigsh(A, k=k, which="SA", tol=1e-5)
# Compute Smallest Magnitude -> Checks for flatness/degeneracy
evals_flat, evecs_flat = eigsh(A, k=k, which="SM", tol=1e-5)
# Compute Largest Eigenvalue -> Used for Condition Number
evals_large, evecs_large = eigsh(A, k=k, which="LA", tol=1e-5)
return {
"min_algebraic": (evals_small, evecs_small), # Most negative (or smallest positive)
"min_magnitude": (evals_flat, evecs_flat), # Closest to zero
"max_algebraic": (evals_large, evecs_large), # Largest positive
}
# --- USAGE EXAMPLE ---
# Assume 'param' is your optimized solution from the previous step
# param = ... (your optimized array)
results = get_eigenvalues(rosenbrock, param, k=1)
lambda_min = results["min_algebraic"][0][0]
lambda_flat = results["min_magnitude"][0][0] # Should be same as min if positive definite
lambda_max = results["max_algebraic"][0][0]
print(f"Smallest Eigenvalue: {lambda_min:.4e}")
print(f"Largest Eigenvalue: {lambda_max:.4e}")
print(f"Condition Number: {abs(lambda_max / lambda_flat):.4e}")
---------------------------------------------------------------------------
TypeError Traceback (most recent call last)
Cell In[18], line 53
43 return {
44 "min_algebraic": (evals_small, evecs_small), # Most negative (or smallest positive)
45 "min_magnitude": (evals_flat, evecs_flat), # Closest to zero
46 "max_algebraic": (evals_large, evecs_large) # Largest positive
47 }
49 # --- USAGE EXAMPLE ---
50 # Assume 'param' is your optimized solution from the previous step
51 # param = ... (your optimized array)
---> 53 results = get_eigenvalues(rosenbrock, param, k=1)
55 lambda_min = results["min_algebraic"][0][0]
56 lambda_flat = results["min_magnitude"][0][0] # Should be same as min if positive definite
Cell In[18], line 32, in get_eigenvalues(func, params, k)
29 return np.array(hvp(func, params, v_jax))
31 # Create the LinearOperator
---> 32 A = LinearOperator((N, N), matvec=matvec)
34 # Compute Smallest Eigenvalue (Algebraic) -> Checks for negative curvature
35 evals_small, evecs_small = eigsh(A, k=k, which='SA', tol=1e-5)
File ~/micromamba/envs/fg/lib/python3.11/site-packages/scipy/sparse/linalg/_interface.py:607, in _CustomLinearOperator.__init__(self, shape, matvec, rmatvec, matmat, dtype, rmatmat)
604 self.__rmatmat_impl = rmatmat
605 self.__matmat_impl = matmat
--> 607 self._init_dtype()
File ~/micromamba/envs/fg/lib/python3.11/site-packages/scipy/sparse/linalg/_interface.py:199, in LinearOperator._init_dtype(self)
197 v = np.zeros(self.shape[-1], dtype=np.int8)
198 try:
--> 199 matvec_v = np.asarray(self.matvec(v))
200 except OverflowError:
201 # Python large `int` promoted to `np.int64`or `np.int32`
202 self.dtype = np.dtype(int)
File ~/micromamba/envs/fg/lib/python3.11/site-packages/scipy/sparse/linalg/_interface.py:258, in LinearOperator.matvec(self, x)
255 if x.shape != (N,) and x.shape != (N,1):
256 raise ValueError('dimension mismatch')
--> 258 y = self._matvec(x)
260 if isinstance(x, np.matrix):
261 y = asmatrix(y)
File ~/micromamba/envs/fg/lib/python3.11/site-packages/scipy/sparse/linalg/_interface.py:616, in _CustomLinearOperator._matvec(self, x)
615 def _matvec(self, x):
--> 616 return self.__matvec_impl(x)
Cell In[18], line 29, in get_eigenvalues.<locals>.matvec(v)
27 v_jax = jnp.array(v)
28 # hvp requires the function, the point (params), and the vector (v)
---> 29 return np.array(hvp(func, params, v_jax))
[... skipping hidden 5 frame]
File ~/micromamba/envs/fg/lib/python3.11/site-packages/jax/_src/pjit.py:678, in _infer_input_type(fun, dbg_fn, explicit_args)
676 dbg = dbg_fn()
677 arg_description = f"path {dbg.arg_names[i] if dbg.arg_names is not None else 'unknown'}" # pytype: disable=name-error
--> 678 raise TypeError(
679 f"Error interpreting argument to {fun} as an abstract array."
680 f" The problematic value is of type {type(x)} and was passed to" # pytype: disable=name-error
681 f" the function at {arg_description}.\n"
682 "This typically means that a jit-wrapped function was called with a non-array"
683 " argument, and this argument was not marked as static using the"
684 " static_argnums or static_argnames parameters of jax.jit."
685 ) from None
686 if config.mutable_array_checks.value:
687 check_no_aliased_ref_args(dbg_fn, avals, explicit_args)
TypeError: Error interpreting argument to <function hvp at 0x7fbc453bb420> as an abstract array. The problematic value is of type <class 'function'> and was passed to the function at path f.
This typically means that a jit-wrapped function was called with a non-array argument, and this argument was not marked as static using the static_argnums or static_argnames parameters of jax.jit.
[ ]:
# Define all benchmark configurations
configs = []
# Adam/SGD/Ada (16 runs): 4 solvers x 2 lr x 2 precond
# for solver in ["adam", "sgd", "adabelief", "adaw"]:
# for lr in [1e-3, 1e-2]:
# for precond in [False, True]:
# configs.append({
# "name": f"{solver}_lr{lr}_{'cond' if precond else 'nocond'}",
# "solver": solver,
# "lr": lr,
# "precond": precond,
# "category": "Adam/SGD"
# })
#
# Active Set v1 (24 runs): 4 solvers x 3 lr x 2 linesearch
for solver in ["active_set", "active_set_sgd", "active_set_adabelief", "active_set_adaw"]:
for lr in [1e-3, 1e-2, 1.0]:
for ls in ["backtracking", "zoom"]:
configs.append(
{
"name": f"{solver}_lr{lr}_{ls[:2]}",
"solver": solver,
"lr": lr,
"ls": ls,
"precond": False,
"category": "Active Set v1",
}
)
# Active Set v2 (24 runs): 4 solvers x 3 lr x 2 linesearch
# for solver in ["active_set_v2", "active_set_v2_sgd", "active_set_v2_adabelief", "active_set_v2_adaw"]:
# for lr in [1e-3, 1e-2, 1.0]:
# for ls in ["backtracking", "zoom"]:
# configs.append({
# "name": f"{solver}_lr{lr}_{ls[:2]}",
# "solver": solver,
# "lr": lr,
# "ls": ls,
# "precond": False,
# "category": "Active Set v2"
# })
# LBFGS (4 runs): 2 linesearch x 2 precond
# for ls_type, solver in [("backtracking", "optax_lbfgs"), ("zoom", "optax_lbfgs")]:
# for precond in [False, True]:
# configs.append({
# "name": f"lbfgs_{ls_type[:2]}_{'cond' if precond else 'nocond'}",
# "solver": solver,
# "precond": precond,
# "category": "LBFGS"
# })#
## Scipy (2 runs)
# for solver in ["scipy_tnc", "scipy_cobyqa"]:
# configs.append({
# "name": solver,
# "solver": solver,
# "precond": False,
# "category": "Scipy"
# })
print(f"Total configurations: {len(configs)}")
Total configurations: 70
[4]:
def run_benchmark(config, x0, max_iter=2000, lower_bound=-5.0, upper_bound=10.0):
"""Run a single benchmark configuration."""
solver_opts = {}
if "lr" in config:
solver_opts["learning_rate"] = config["lr"]
if "ls" in config:
solver_opts["linesearch"] = config["ls"]
try:
xs, state = minimize(
rosenbrock,
x0,
solver_name=config["solver"],
solver_options=solver_opts,
precondition=config.get("precond", False),
lower_bound=lower_bound,
upper_bound=upper_bound,
max_iter=max_iter,
atol=1e-15,
rtol=1e-12,
)
final_loss = float(rosenbrock(xs))
distance = float(jnp.linalg.norm(xs - 1.0))
steps = int(state.iter_num)
converged = final_loss < 1e-10
error = None
except Exception as e:
final_loss = float("inf")
distance = float("inf")
steps = -1
converged = False
error = str(e)[:50]
return {
"name": config["name"],
"category": config["category"],
"steps": steps,
"final_loss": final_loss,
"distance_to_opt": distance,
"converged": converged,
"error": error,
}
[5]:

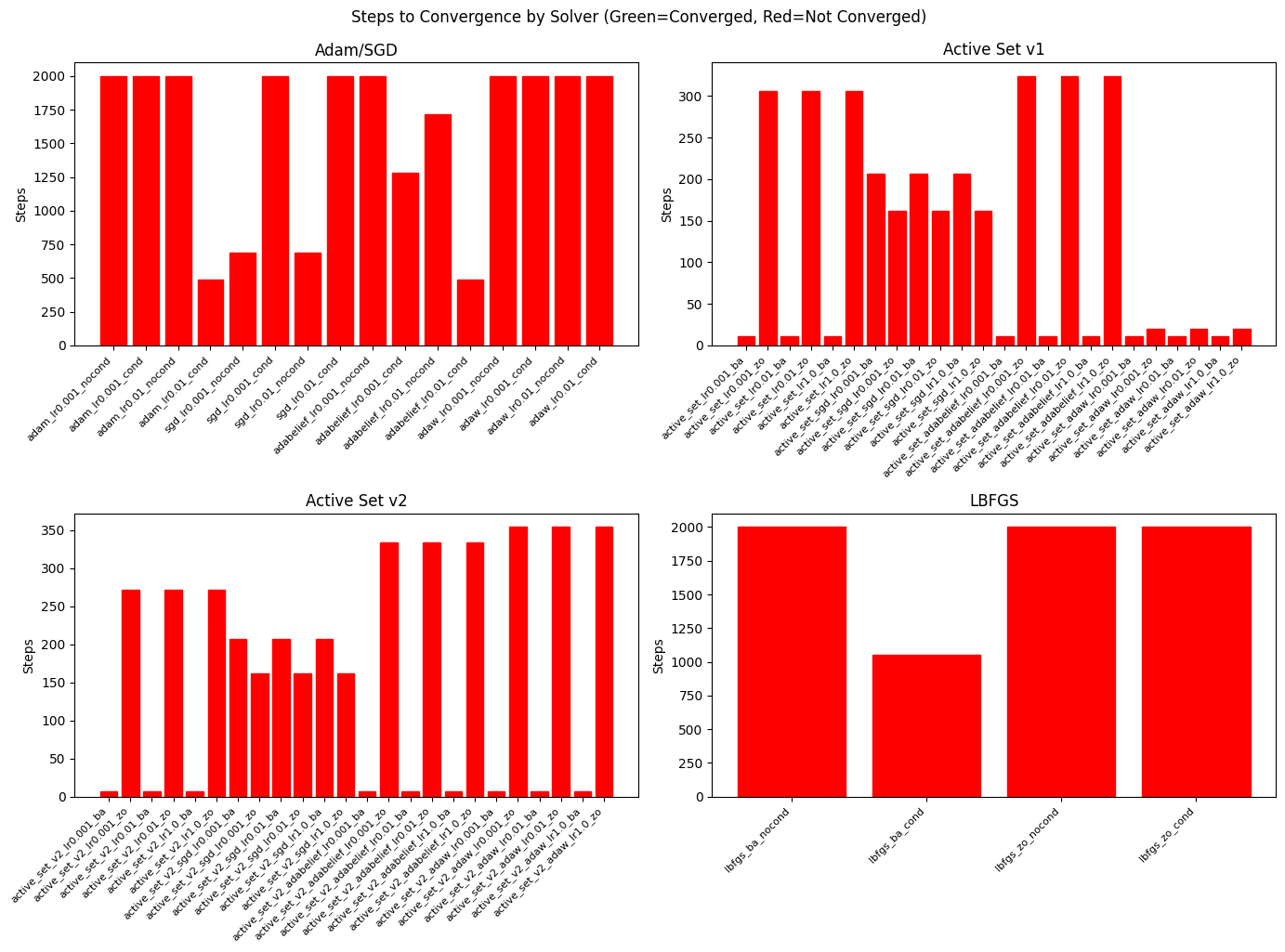

# Run all benchmarks
results = []
for i, config in enumerate(configs):
print(f"Running {i+1}/{len(configs)}: {config['name']}...", end=" ")
result = run_benchmark(config, x0)
results.append(result)
if result["error"]:
print(f"ERROR: {result['error']}")
else:
print(
f"steps={result['steps']}, loss={result['final_loss']:.2e}, dist={result['distance_to_opt']:.2e}"
)
print("\nDone!")
Running 1/70: adam_lr0.001_nocond...
100.00%|██████████| [00:00<00:00, 476.21%/s]
steps=2000, loss=5.65e+06, dist=6.61e+00
Running 2/70: adam_lr0.001_cond...
100.00%|██████████| [00:00<00:00, 625.71%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 3/70: adam_lr0.01_nocond...
100.00%|██████████| [00:00<00:00, 546.04%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 4/70: adam_lr0.01_cond...
100.00%|██████████| [00:00<00:00, 2284.43%/s]
steps=488, loss=3.09e+06, dist=1.30e+01
Running 5/70: sgd_lr0.001_nocond...
100.00%|██████████| [00:00<00:00, 833.87%/s]
steps=692, loss=3.09e+06, dist=1.30e+01
Running 6/70: sgd_lr0.001_cond...
100.00%|██████████| [00:00<00:00, 306.53%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 7/70: sgd_lr0.01_nocond...
100.00%|██████████| [00:00<00:00, 830.25%/s]
steps=692, loss=3.09e+06, dist=1.30e+01
Running 8/70: sgd_lr0.01_cond...
100.00%|██████████| [00:00<00:00, 290.09%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 9/70: adabelief_lr0.001_nocond...
100.00%|██████████| [00:00<00:00, 329.96%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 10/70: adabelief_lr0.001_cond...
100.00%|██████████| [00:00<00:00, 615.16%/s]
steps=1280, loss=3.09e+06, dist=1.30e+01
Running 11/70: adabelief_lr0.01_nocond...
100.00%|██████████| [00:00<00:00, 501.87%/s]
steps=1718, loss=3.09e+06, dist=1.30e+01
Running 12/70: adabelief_lr0.01_cond...
100.00%|██████████| [00:00<00:00, 1663.88%/s]
steps=488, loss=3.09e+06, dist=1.30e+01
Running 13/70: adaw_lr0.001_nocond...
100.00%|██████████| [00:00<00:00, 371.64%/s]
steps=2000, loss=5.65e+06, dist=6.61e+00
Running 14/70: adaw_lr0.001_cond...
100.00%|██████████| [00:00<00:00, 447.37%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 15/70: adaw_lr0.01_nocond...
100.00%|██████████| [00:00<00:00, 423.62%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 16/70: adaw_lr0.01_cond...
100.00%|██████████| [00:00<00:00, 390.73%/s]
steps=2000, loss=3.09e+06, dist=1.30e+01
Running 17/70: active_set_lr0.001_ba...
100.00%|██████████| [00:00<00:00, 14680.28%/s]
steps=11, loss=3.10e+06, dist=1.57e+01
Running 18/70: active_set_lr0.001_zo...
100.00%|██████████| [00:00<00:00, 963.83%/s]
steps=306, loss=3.10e+06, dist=1.57e+01
Running 19/70: active_set_lr0.01_ba...
100.00%|██████████| [00:00<00:00, 14195.36%/s]
steps=11, loss=3.10e+06, dist=1.57e+01
Running 20/70: active_set_lr0.01_zo...
100.00%|██████████| [00:00<00:00, 1163.71%/s]
steps=306, loss=3.10e+06, dist=1.57e+01
Running 21/70: active_set_lr1.0_ba...
100.00%|██████████| [00:00<00:00, 15488.00%/s]
steps=11, loss=3.10e+06, dist=1.57e+01
Running 22/70: active_set_lr1.0_zo...
100.00%|██████████| [00:00<00:00, 943.88%/s]
steps=306, loss=3.10e+06, dist=1.57e+01
Running 23/70: active_set_sgd_lr0.001_ba...
100.00%|██████████| [00:00<00:00, 2004.28%/s]
steps=207, loss=3.10e+06, dist=1.55e+01
Running 24/70: active_set_sgd_lr0.001_zo...
100.00%|██████████| [00:00<00:00, 1905.31%/s]
steps=162, loss=3.09e+06, dist=1.30e+01
Running 25/70: active_set_sgd_lr0.01_ba...
100.00%|██████████| [00:00<00:00, 1811.92%/s]
steps=207, loss=3.10e+06, dist=1.55e+01
Running 26/70: active_set_sgd_lr0.01_zo...
100.00%|██████████| [00:00<00:00, 1967.07%/s]
steps=162, loss=3.09e+06, dist=1.30e+01
Running 27/70: active_set_sgd_lr1.0_ba...
100.00%|██████████| [00:00<00:00, 1896.83%/s]
steps=207, loss=3.10e+06, dist=1.55e+01
Running 28/70: active_set_sgd_lr1.0_zo...
100.00%|██████████| [00:00<00:00, 2140.39%/s]
steps=162, loss=3.09e+06, dist=1.30e+01
Running 29/70: active_set_adabelief_lr0.001_ba...
100.00%|██████████| [00:00<00:00, 8536.46%/s]
steps=11, loss=3.10e+06, dist=1.65e+01
Running 30/70: active_set_adabelief_lr0.001_zo...
100.00%|██████████| [00:00<00:00, 955.49%/s]
steps=324, loss=3.09e+06, dist=1.64e+01
Running 31/70: active_set_adabelief_lr0.01_ba...
100.00%|██████████| [00:00<00:00, 8080.27%/s]
steps=11, loss=3.10e+06, dist=1.65e+01
Running 32/70: active_set_adabelief_lr0.01_zo...
100.00%|██████████| [00:00<00:00, 896.12%/s]
steps=324, loss=3.09e+06, dist=1.64e+01
Running 33/70: active_set_adabelief_lr1.0_ba...
100.00%|██████████| [00:00<00:00, 8327.15%/s]
steps=11, loss=3.10e+06, dist=1.65e+01
Running 34/70: active_set_adabelief_lr1.0_zo...
100.00%|██████████| [00:00<00:00, 966.37%/s]
steps=324, loss=3.09e+06, dist=1.64e+01
Running 35/70: active_set_adaw_lr0.001_ba...
100.00%|██████████| [00:00<00:00, 14575.70%/s]
steps=11, loss=3.10e+06, dist=1.57e+01
Running 36/70: active_set_adaw_lr0.001_zo...
100.00%|██████████| [00:00<00:00, 11449.21%/s]
steps=20, loss=3.10e+06, dist=1.54e+01
Running 37/70: active_set_adaw_lr0.01_ba...
100.00%|██████████| [00:00<00:00, 14684.91%/s]
steps=11, loss=3.10e+06, dist=1.57e+01
Running 38/70: active_set_adaw_lr0.01_zo...
100.00%|██████████| [00:00<00:00, 9808.25%/s]
steps=20, loss=3.10e+06, dist=1.54e+01
Running 39/70: active_set_adaw_lr1.0_ba...
100.00%|██████████| [00:00<00:00, 13707.32%/s]
steps=11, loss=3.10e+06, dist=1.57e+01
Running 40/70: active_set_adaw_lr1.0_zo...
100.00%|██████████| [00:00<00:00, 11343.31%/s]
steps=20, loss=3.10e+06, dist=1.54e+01
Running 41/70: active_set_v2_lr0.001_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 10553.57%/s]
steps=7, loss=3.13e+06, dist=1.67e+01
Running 42/70: active_set_v2_lr0.001_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 940.62%/s]
steps=271, loss=3.09e+06, dist=1.66e+01
Running 43/70: active_set_v2_lr0.01_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 10691.85%/s]
steps=7, loss=3.13e+06, dist=1.67e+01
Running 44/70: active_set_v2_lr0.01_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 984.29%/s]
steps=271, loss=3.09e+06, dist=1.66e+01
Running 45/70: active_set_v2_lr1.0_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 10521.80%/s]
steps=7, loss=3.13e+06, dist=1.67e+01
Running 46/70: active_set_v2_lr1.0_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 974.43%/s]
steps=271, loss=3.09e+06, dist=1.66e+01
Running 47/70: active_set_v2_sgd_lr0.001_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 1706.56%/s]
steps=207, loss=3.10e+06, dist=1.55e+01
Running 48/70: active_set_v2_sgd_lr0.001_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 2000.12%/s]
steps=162, loss=3.09e+06, dist=1.30e+01
Running 49/70: active_set_v2_sgd_lr0.01_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 2061.27%/s]
steps=207, loss=3.10e+06, dist=1.55e+01
Running 50/70: active_set_v2_sgd_lr0.01_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 1825.70%/s]
steps=162, loss=3.09e+06, dist=1.30e+01
Running 51/70: active_set_v2_sgd_lr1.0_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 1712.28%/s]
steps=207, loss=3.10e+06, dist=1.55e+01
Running 52/70: active_set_v2_sgd_lr1.0_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 1970.20%/s]
steps=162, loss=3.09e+06, dist=1.30e+01
Running 53/70: active_set_v2_adabelief_lr0.001_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 19730.47%/s]
steps=7, loss=3.12e+06, dist=1.67e+01
Running 54/70: active_set_v2_adabelief_lr0.001_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 1078.32%/s]
steps=334, loss=3.09e+06, dist=1.64e+01
Running 55/70: active_set_v2_adabelief_lr0.01_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 20118.50%/s]
steps=7, loss=3.12e+06, dist=1.67e+01
Running 56/70: active_set_v2_adabelief_lr0.01_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 938.12%/s]
steps=334, loss=3.09e+06, dist=1.64e+01
Running 57/70: active_set_v2_adabelief_lr1.0_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 18135.96%/s]
steps=7, loss=3.12e+06, dist=1.67e+01
Running 58/70: active_set_v2_adabelief_lr1.0_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 1026.11%/s]
steps=334, loss=3.09e+06, dist=1.64e+01
Running 59/70: active_set_v2_adaw_lr0.001_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 19750.91%/s]
steps=7, loss=3.13e+06, dist=1.67e+01
Running 60/70: active_set_v2_adaw_lr0.001_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 893.82%/s]
steps=354, loss=3.09e+06, dist=1.66e+01
Running 61/70: active_set_v2_adaw_lr0.01_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 19665.72%/s]
steps=7, loss=3.13e+06, dist=1.67e+01
Running 62/70: active_set_v2_adaw_lr0.01_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 809.27%/s]
steps=354, loss=3.09e+06, dist=1.66e+01
Running 63/70: active_set_v2_adaw_lr1.0_ba... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 18779.06%/s]
steps=7, loss=3.13e+06, dist=1.67e+01
Running 64/70: active_set_v2_adaw_lr1.0_zo... key active_set: max_constraints_to_release=1 / 10 params
max release k: 1
k is 1, n_params is 10
100.00%|██████████| [00:00<00:00, 938.23%/s]
steps=354, loss=3.09e+06, dist=1.66e+01
Running 65/70: lbfgs_ba_nocond...
100.00%|██████████| [00:00<00:00, 142.57%/s]
steps=2000, loss=3.16e+06, dist=9.35e+00
Running 66/70: lbfgs_ba_cond...
100.00%|██████████| [00:00<00:00, 315.15%/s]
steps=1053, loss=3.10e+06, dist=9.62e+00
Running 67/70: lbfgs_zo_nocond...
100.00%|██████████| [00:02<00:00, 42.60%/s]
steps=2000, loss=3.17e+06, dist=9.32e+00
Running 68/70: lbfgs_zo_cond...
100.00%|██████████| [00:00<00:00, 142.44%/s]
/home/wassim/micromamba/envs/fg/lib/python3.11/site-packages/jaxopt/_src/scipy_wrappers.py:341: OptimizeWarning: Unknown solver options: maxiter
res = osp.optimize.minimize(scipy_fun, jnp_to_onp(init_params, self.dtype),
steps=2000, loss=3.09e+06, dist=1.29e+01
Running 69/70: scipy_tnc... steps=15, loss=3.09e+06, dist=1.30e+01
Running 70/70: scipy_cobyqa...
/home/wassim/micromamba/envs/fg/lib/python3.11/site-packages/jaxopt/_src/scipy_wrappers.py:341: RuntimeWarning: Method cobyqa does not use gradient information (jac).
res = osp.optimize.minimize(scipy_fun, jnp_to_onp(init_params, self.dtype),
steps=246, loss=3.09e+06, dist=1.41e+01
Done!
[6]:
# Create results DataFrame
df = pd.DataFrame(results)
# Format for display
df_display = df.copy()
df_display["final_loss"] = df_display["final_loss"].apply(
lambda x: f"{x:.2e}" if x != float("inf") else "inf"
)
df_display["distance_to_opt"] = df_display["distance_to_opt"].apply(
lambda x: f"{x:.2e}" if x != float("inf") else "inf"
)
# Display by category
for category in df["category"].unique():
print(f"\n{'='*60}")
print(f" {category}")
print(f"{'='*60}")
cat_df = df_display[df_display["category"] == category][
["name", "steps", "final_loss", "distance_to_opt", "converged"]
]
print(cat_df.to_string(index=False))
============================================================
Adam/SGD
============================================================
name steps final_loss distance_to_opt converged
adam_lr0.001_nocond 2000 5.65e+06 6.61e+00 False
adam_lr0.001_cond 2000 3.09e+06 1.30e+01 False
adam_lr0.01_nocond 2000 3.09e+06 1.30e+01 False
adam_lr0.01_cond 488 3.09e+06 1.30e+01 False
sgd_lr0.001_nocond 692 3.09e+06 1.30e+01 False
sgd_lr0.001_cond 2000 3.09e+06 1.30e+01 False
sgd_lr0.01_nocond 692 3.09e+06 1.30e+01 False
sgd_lr0.01_cond 2000 3.09e+06 1.30e+01 False
adabelief_lr0.001_nocond 2000 3.09e+06 1.30e+01 False
adabelief_lr0.001_cond 1280 3.09e+06 1.30e+01 False
adabelief_lr0.01_nocond 1718 3.09e+06 1.30e+01 False
adabelief_lr0.01_cond 488 3.09e+06 1.30e+01 False
adaw_lr0.001_nocond 2000 5.65e+06 6.61e+00 False
adaw_lr0.001_cond 2000 3.09e+06 1.30e+01 False
adaw_lr0.01_nocond 2000 3.09e+06 1.30e+01 False
adaw_lr0.01_cond 2000 3.09e+06 1.30e+01 False
============================================================
Active Set v1
============================================================
name steps final_loss distance_to_opt converged
active_set_lr0.001_ba 11 3.10e+06 1.57e+01 False
active_set_lr0.001_zo 306 3.10e+06 1.57e+01 False
active_set_lr0.01_ba 11 3.10e+06 1.57e+01 False
active_set_lr0.01_zo 306 3.10e+06 1.57e+01 False
active_set_lr1.0_ba 11 3.10e+06 1.57e+01 False
active_set_lr1.0_zo 306 3.10e+06 1.57e+01 False
active_set_sgd_lr0.001_ba 207 3.10e+06 1.55e+01 False
active_set_sgd_lr0.001_zo 162 3.09e+06 1.30e+01 False
active_set_sgd_lr0.01_ba 207 3.10e+06 1.55e+01 False
active_set_sgd_lr0.01_zo 162 3.09e+06 1.30e+01 False
active_set_sgd_lr1.0_ba 207 3.10e+06 1.55e+01 False
active_set_sgd_lr1.0_zo 162 3.09e+06 1.30e+01 False
active_set_adabelief_lr0.001_ba 11 3.10e+06 1.65e+01 False
active_set_adabelief_lr0.001_zo 324 3.09e+06 1.64e+01 False
active_set_adabelief_lr0.01_ba 11 3.10e+06 1.65e+01 False
active_set_adabelief_lr0.01_zo 324 3.09e+06 1.64e+01 False
active_set_adabelief_lr1.0_ba 11 3.10e+06 1.65e+01 False
active_set_adabelief_lr1.0_zo 324 3.09e+06 1.64e+01 False
active_set_adaw_lr0.001_ba 11 3.10e+06 1.57e+01 False
active_set_adaw_lr0.001_zo 20 3.10e+06 1.54e+01 False
active_set_adaw_lr0.01_ba 11 3.10e+06 1.57e+01 False
active_set_adaw_lr0.01_zo 20 3.10e+06 1.54e+01 False
active_set_adaw_lr1.0_ba 11 3.10e+06 1.57e+01 False
active_set_adaw_lr1.0_zo 20 3.10e+06 1.54e+01 False
============================================================
Active Set v2
============================================================
name steps final_loss distance_to_opt converged
active_set_v2_lr0.001_ba 7 3.13e+06 1.67e+01 False
active_set_v2_lr0.001_zo 271 3.09e+06 1.66e+01 False
active_set_v2_lr0.01_ba 7 3.13e+06 1.67e+01 False
active_set_v2_lr0.01_zo 271 3.09e+06 1.66e+01 False
active_set_v2_lr1.0_ba 7 3.13e+06 1.67e+01 False
active_set_v2_lr1.0_zo 271 3.09e+06 1.66e+01 False
active_set_v2_sgd_lr0.001_ba 207 3.10e+06 1.55e+01 False
active_set_v2_sgd_lr0.001_zo 162 3.09e+06 1.30e+01 False
active_set_v2_sgd_lr0.01_ba 207 3.10e+06 1.55e+01 False
active_set_v2_sgd_lr0.01_zo 162 3.09e+06 1.30e+01 False
active_set_v2_sgd_lr1.0_ba 207 3.10e+06 1.55e+01 False
active_set_v2_sgd_lr1.0_zo 162 3.09e+06 1.30e+01 False
active_set_v2_adabelief_lr0.001_ba 7 3.12e+06 1.67e+01 False
active_set_v2_adabelief_lr0.001_zo 334 3.09e+06 1.64e+01 False
active_set_v2_adabelief_lr0.01_ba 7 3.12e+06 1.67e+01 False
active_set_v2_adabelief_lr0.01_zo 334 3.09e+06 1.64e+01 False
active_set_v2_adabelief_lr1.0_ba 7 3.12e+06 1.67e+01 False
active_set_v2_adabelief_lr1.0_zo 334 3.09e+06 1.64e+01 False
active_set_v2_adaw_lr0.001_ba 7 3.13e+06 1.67e+01 False
active_set_v2_adaw_lr0.001_zo 354 3.09e+06 1.66e+01 False
active_set_v2_adaw_lr0.01_ba 7 3.13e+06 1.67e+01 False
active_set_v2_adaw_lr0.01_zo 354 3.09e+06 1.66e+01 False
active_set_v2_adaw_lr1.0_ba 7 3.13e+06 1.67e+01 False
active_set_v2_adaw_lr1.0_zo 354 3.09e+06 1.66e+01 False
============================================================
LBFGS
============================================================
name steps final_loss distance_to_opt converged
lbfgs_ba_nocond 2000 3.16e+06 9.35e+00 False
lbfgs_ba_cond 1053 3.10e+06 9.62e+00 False
lbfgs_zo_nocond 2000 3.17e+06 9.32e+00 False
lbfgs_zo_cond 2000 3.09e+06 1.29e+01 False
============================================================
Scipy
============================================================
name steps final_loss distance_to_opt converged
scipy_tnc 15 3.09e+06 1.30e+01 False
scipy_cobyqa 246 3.09e+06 1.41e+01 False
[7]:
# Summary statistics
print("\n" + "=" * 60)
print(" Summary by Category")
print("=" * 60)
# Filter out failed runs
df_valid = df[df["steps"] > 0]
summary = (
df_valid.groupby("category")
.agg({"steps": ["mean", "min", "max"], "final_loss": ["mean", "min"], "converged": "sum"})
.round(2)
)
print(summary)
============================================================
Summary by Category
============================================================
steps final_loss converged
mean min max mean min sum
category
Active Set v1 131.50 11 324 3096446.04 3089881.70 0
Active Set v2 168.62 7 354 3104310.62 3089881.70 0
Adam/SGD 1584.88 488 2000 3409857.30 3089881.70 0
LBFGS 1763.25 1053 2000 3131901.62 3093938.39 0
Scipy 130.50 15 246 3087563.82 3085245.93 0
[8]:
# Visualization: Steps comparison
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
categories = df["category"].unique()
colors = plt.cm.tab10.colors
for ax, category in zip(axes.flat, categories):
cat_df = df[df["category"] == category]
cat_df_valid = cat_df[cat_df["steps"] > 0]
if len(cat_df_valid) > 0:
bars = ax.bar(range(len(cat_df_valid)), cat_df_valid["steps"].values)
ax.set_xticks(range(len(cat_df_valid)))
ax.set_xticklabels(cat_df_valid["name"].values, rotation=45, ha="right", fontsize=8)
# Color by convergence
for bar, converged in zip(bars, cat_df_valid["converged"].values):
bar.set_color("green" if converged else "red")
ax.set_title(category)
ax.set_ylabel("Steps")
plt.tight_layout()
plt.suptitle("Steps to Convergence by Solver (Green=Converged, Red=Not Converged)", y=1.02)
plt.show()
[9]:

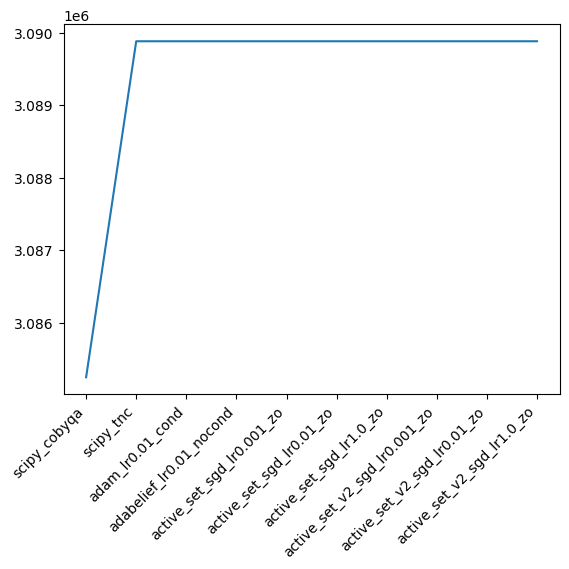

sorted_args = jnp.argsort(df["final_loss"].values)
sorted_f = df["final_loss"].values[sorted_args][:10]
sorted_names = df["name"].values[sorted_args][:10]
plt.plot(sorted_f)
plt.xticks(ticks=range(len(sorted_names)), labels=sorted_names, rotation=45, ha="right")
[9]:
([<matplotlib.axis.XTick at 0x7f8a5022f990>,
<matplotlib.axis.XTick at 0x7f8a5029cd10>,
<matplotlib.axis.XTick at 0x7f8a502ab4d0>,
<matplotlib.axis.XTick at 0x7f8a502b9c10>,
<matplotlib.axis.XTick at 0x7f8a502bbed0>,
<matplotlib.axis.XTick at 0x7f8a502ba390>,
<matplotlib.axis.XTick at 0x7f8a502bf3d0>,
<matplotlib.axis.XTick at 0x7f8a502c5890>,
<matplotlib.axis.XTick at 0x7f8a502c7bd0>,
<matplotlib.axis.XTick at 0x7f8a502d2090>],
[Text(0, 0, 'scipy_cobyqa'),
Text(1, 0, 'scipy_tnc'),
Text(2, 0, 'adam_lr0.01_cond'),
Text(3, 0, 'adabelief_lr0.01_nocond'),
Text(4, 0, 'active_set_sgd_lr0.001_zo'),
Text(5, 0, 'active_set_sgd_lr0.01_zo'),
Text(6, 0, 'active_set_sgd_lr1.0_zo'),
Text(7, 0, 'active_set_v2_sgd_lr0.001_zo'),
Text(8, 0, 'active_set_v2_sgd_lr0.01_zo'),
Text(9, 0, 'active_set_v2_sgd_lr1.0_zo')])
[45]:

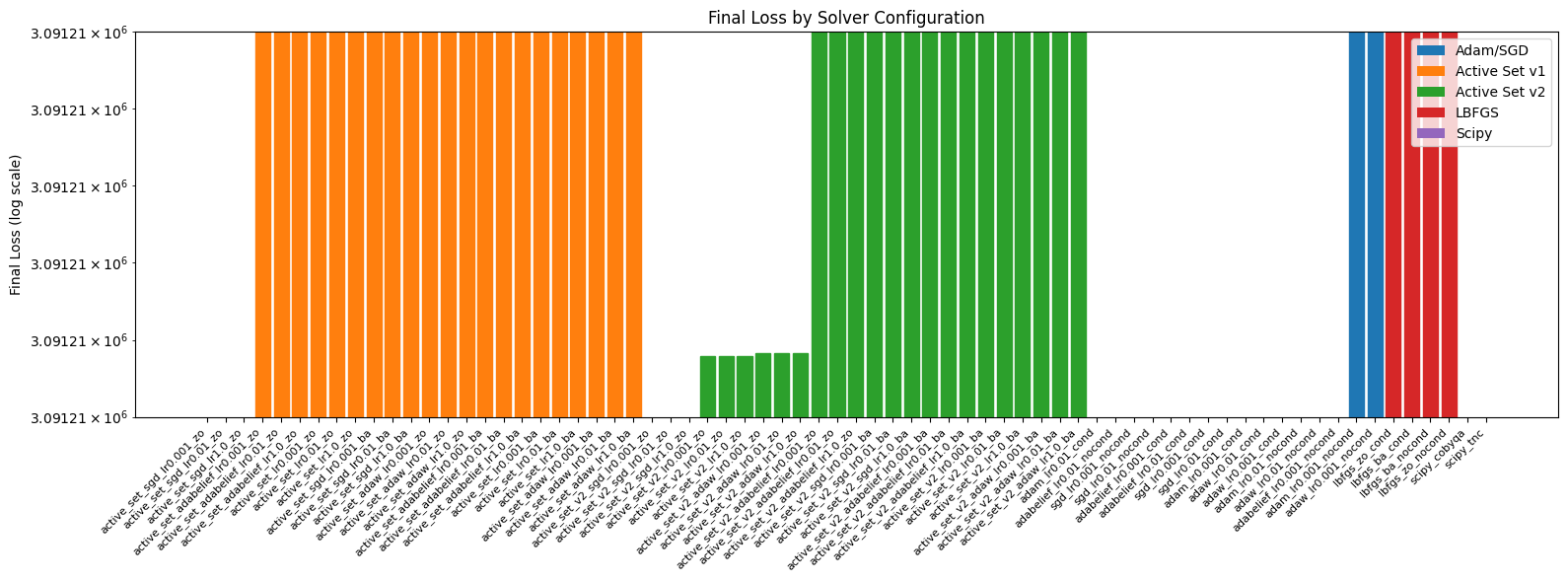

# Visualization: Final loss comparison (log scale)
fig, ax = plt.subplots(figsize=(16, 6))
df_valid = df[df["steps"] > 0].copy()
df_valid = df_valid.sort_values(["category", "final_loss"])
# Create grouped bar chart
x = range(len(df_valid))
bars = ax.bar(x, df_valid["final_loss"].values)
# Color by category
category_colors = {cat: colors[i] for i, cat in enumerate(categories)}
for bar, cat in zip(bars, df_valid["category"].values):
bar.set_color(category_colors[cat])
ax.set_yscale("log")
ax.set_xticks(x)
ax.set_xticklabels(df_valid["name"].values, rotation=45, ha="right", fontsize=8)
ax.set_ylabel("Final Loss (log scale)")
ax.set_title("Final Loss by Solver Configuration")
ax.axhline(y=1e-10, color="black", linestyle="--", label="Convergence threshold")
ax.set_ylim(3.0912078e6, 3.09120785e6)
# Add legend
from matplotlib.patches import Patch
legend_elements = [Patch(facecolor=category_colors[cat], label=cat) for cat in categories]
ax.legend(handles=legend_elements, loc="upper right")
plt.tight_layout()
plt.show()
[11]:
# Best performers per category
print("\n" + "=" * 60)
print(" Best Performer per Category")
print("=" * 60)
for category in categories:
cat_df = df[(df["category"] == category) & (df["steps"] > 0)]
if len(cat_df) > 0:
# Best by final loss
best = cat_df.loc[cat_df["final_loss"].idxmin()]
print(f"\n{category}:")
print(f" Best by loss: {best['name']}")
print(
f" - Steps: {best['steps']}, Loss: {best['final_loss']:.2e}, Dist: {best['distance_to_opt']:.2e}"
)
# Best by steps (among converged)
converged = cat_df[cat_df["converged"]]
if len(converged) > 0:
fastest = converged.loc[converged["steps"].idxmin()]
print(f" Fastest converged: {fastest['name']}")
print(f" - Steps: {fastest['steps']}, Loss: {fastest['final_loss']:.2e}")
============================================================
Best Performer per Category
============================================================
Adam/SGD:
Best by loss: adam_lr0.01_cond
- Steps: 488, Loss: 3.09e+06, Dist: 1.30e+01
Active Set v1:
Best by loss: active_set_sgd_lr0.001_zo
- Steps: 162, Loss: 3.09e+06, Dist: 1.30e+01
Active Set v2:
Best by loss: active_set_v2_sgd_lr0.001_zo
- Steps: 162, Loss: 3.09e+06, Dist: 1.30e+01
LBFGS:
Best by loss: lbfgs_zo_cond
- Steps: 2000, Loss: 3.09e+06, Dist: 1.29e+01
Scipy:
Best by loss: scipy_cobyqa
- Steps: 246, Loss: 3.09e+06, Dist: 1.41e+01
[12]:
# Active Set v1 vs v2 comparison
# print("\n" + "="*60)
# print(" Active Set v1 vs v2 Comparison")
# print("="*60)
#
# v1_df = df[df["category"] == "Active Set v1"][["name", "steps", "final_loss", "converged"]].reset_index(drop=True)
# v2_df = df[df["category"] == "Active Set v2"][["name", "steps", "final_loss", "converged"]].reset_index(drop=True)
#
## Create side-by-side comparison
# comparison = pd.DataFrame({
# "v1_name": v1_df["name"],
# "v1_steps": v1_df["steps"],
# "v1_loss": v1_df["final_loss"].apply(lambda x: f"{x:.2e}"),
# "v2_name": v2_df["name"],
# "v2_steps": v2_df["steps"],
# "v2_loss": v2_df["final_loss"].apply(lambda x: f"{x:.2e}"),
# })
#
# print(comparison.to_string(index=False))
============================================================
Active Set v1 vs v2 Comparison
============================================================
v1_name v1_steps v1_loss v2_name v2_steps v2_loss
active_set_lr0.001_ba 11 3.10e+06 active_set_v2_lr0.001_ba 7 3.13e+06
active_set_lr0.001_zo 306 3.10e+06 active_set_v2_lr0.001_zo 271 3.09e+06
active_set_lr0.01_ba 11 3.10e+06 active_set_v2_lr0.01_ba 7 3.13e+06
active_set_lr0.01_zo 306 3.10e+06 active_set_v2_lr0.01_zo 271 3.09e+06
active_set_lr1.0_ba 11 3.10e+06 active_set_v2_lr1.0_ba 7 3.13e+06
active_set_lr1.0_zo 306 3.10e+06 active_set_v2_lr1.0_zo 271 3.09e+06
active_set_sgd_lr0.001_ba 207 3.10e+06 active_set_v2_sgd_lr0.001_ba 207 3.10e+06
active_set_sgd_lr0.001_zo 162 3.09e+06 active_set_v2_sgd_lr0.001_zo 162 3.09e+06
active_set_sgd_lr0.01_ba 207 3.10e+06 active_set_v2_sgd_lr0.01_ba 207 3.10e+06
active_set_sgd_lr0.01_zo 162 3.09e+06 active_set_v2_sgd_lr0.01_zo 162 3.09e+06
active_set_sgd_lr1.0_ba 207 3.10e+06 active_set_v2_sgd_lr1.0_ba 207 3.10e+06
active_set_sgd_lr1.0_zo 162 3.09e+06 active_set_v2_sgd_lr1.0_zo 162 3.09e+06
active_set_adabelief_lr0.001_ba 11 3.10e+06 active_set_v2_adabelief_lr0.001_ba 7 3.12e+06
active_set_adabelief_lr0.001_zo 324 3.09e+06 active_set_v2_adabelief_lr0.001_zo 334 3.09e+06
active_set_adabelief_lr0.01_ba 11 3.10e+06 active_set_v2_adabelief_lr0.01_ba 7 3.12e+06
active_set_adabelief_lr0.01_zo 324 3.09e+06 active_set_v2_adabelief_lr0.01_zo 334 3.09e+06
active_set_adabelief_lr1.0_ba 11 3.10e+06 active_set_v2_adabelief_lr1.0_ba 7 3.12e+06
active_set_adabelief_lr1.0_zo 324 3.09e+06 active_set_v2_adabelief_lr1.0_zo 334 3.09e+06
active_set_adaw_lr0.001_ba 11 3.10e+06 active_set_v2_adaw_lr0.001_ba 7 3.13e+06
active_set_adaw_lr0.001_zo 20 3.10e+06 active_set_v2_adaw_lr0.001_zo 354 3.09e+06
active_set_adaw_lr0.01_ba 11 3.10e+06 active_set_v2_adaw_lr0.01_ba 7 3.13e+06
active_set_adaw_lr0.01_zo 20 3.10e+06 active_set_v2_adaw_lr0.01_zo 354 3.09e+06
active_set_adaw_lr1.0_ba 11 3.10e+06 active_set_v2_adaw_lr1.0_ba 7 3.13e+06
active_set_adaw_lr1.0_zo 20 3.10e+06 active_set_v2_adaw_lr1.0_zo 354 3.09e+06
